This is a little collection of schematics I've created basically for a bass player forum called http://www.bass.de/.
There is no particular order, system or theme, it's more like a brain dump. Hey, what do you expect for free? :P

Since the forum mentioned before is in German most schematics have remarks in German, however, they should be readable for non-Germans as well. :)

Most schematics here have been created by myself. There is no usage limitation, no secrets, no rocket science here.

Bass Pre-Amp (with external 19" EQ and compressor)

This pre-amp is meant to be housed in an external case (e. g. 19") not to be built into a bass. I used this kind of setup for a while. I liked the sound, but the weight of this pre-amp, the Behringer EQ and Compressor along with the 3 rack units plus power amp simply was too heavy for me. Still, in a fixed setup it's a real great sounding alternative. The circuit below uses a +/- 15 V DC symmetrical power supply.

See also: Thoughts on Bass Sound Shaping

Active Bass Sound Control 1

This one is suitable for active PUs.

basssoundcontol

Active Bass Sound Control 2

This one is suitable for passive PUs. It also has an impedance matcher and booster with adjustable gain trimmer.

basssoundcontrol2

Active Bass Sound Control 3

Basically the same as 2 but no adjustable gain.

basssoundcontrol3

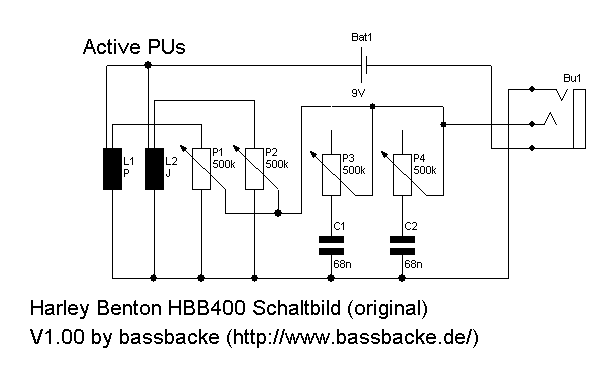

Harley Benton HBB400 Original Schematics

Don't do this. It's not wise. It also drains your battery.


Harley Benton HBB400 Alternative Schematics

This is a bit better, doesn't drain the battery but one potentiometer is unused. So what? :)


Booster/Impedance Matcher (Battery Powered)

This one is with 1 MOhm input impedance and adujstable gain.


Booster/Impedance Matcher (Adaptor Powered)

Same as above but to be used with an external power adaptor. It was successfully tested at 12 V DC.


The result can look like this:


Passive Jazz Bass Electronics


Active Sound Control (Lemme)

Helmuth Lemme, Elektro Gitarren-Elektronik Teil 1, Seite 161, ISBN 3-7724-0278-X.

This book is in German. There is an updated version (also in German) available from:

http://www.gitarrenelektronik.de/ (Helmuth Lemme's web site - from the man himself!)


Active Sound Control (Meyer)

Meyer, Operationsverstärker, 2. Auflage, Seite 45, ISBN 3-7905-0659-1 (this book is in German)


Active Sound Control (Sunn 1200S)

Fender/Sunn schematics coming with the unit. I wished other vendors did the same!


Speaker Hub (2 Speakers) - Lautsprecherverteiler


Here is what the serial version can look like:


Speaker Hub (4 Speakers) - Lautsprecherverteiler


Here is what the parallel version can look like (well, it's 4 times ¼" to 4 times Speakon):


I wonder why someone comes up with a 1200 W at 2 Ohms amp using ¼" connectors. Speakon is better, safer and the more appropriate choice.

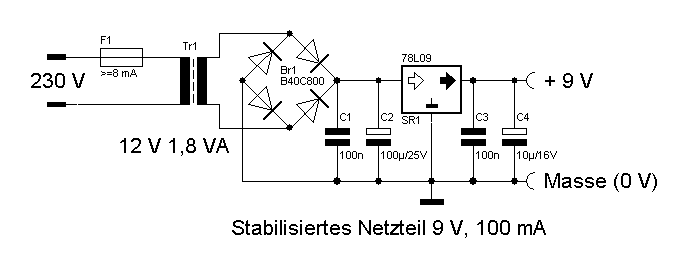

Stabilisiertes Netzteil (9 V) - DC Power Adaptor


Stabilisiertes Netzteil (12 V) - DC Power Adaptor

It's basically the same as the above but the transformer is external and it's 12 V DC. I've built this for someone and I like to document things, otherwise I might not have bothered to draw this modified version. ;)


Passive Volume

OK, this is *very* trivial.
